OT Bar Multiuse

OT Bar Multiuse from Rhein83 is a castable dual sided overdenture bar attachment measuring 2.4 mm in height, which can be indicated as either a ridged or resilient connector between implant abutments. With the use of the system’s unique castable box housings, the substructure frame is fabricated directly on the master model saving time and eliminating the need for the duplication process. The elastic retentive clips are available in four color coded levels of retention. An insertion tool and key for paralleling are also available.

Info Product

Scatola OTBAR MULTIUSE 021OBMi

Ref. 0210BM

OT BAR MULTIUSE
Kit Contains:
• 2 Castable bars
• 4 Positioner clips A
• 4 Positioner clips B
• 4 Castable boxes
• 4 Retentive Pink clips
• 4 Retentive Yellow clips
• 2 Connectors

OT BAR Multiuse 0220BB

Ref. 022OBB

• 4 CASTABLE BARS OT BAR MULTIUSE

Ref. 025CPB

• 4 CASTABLE BOXES OT BAR MULTIUSE

Ref. 023CPA

• 4 POSITIONER CLIPS A

Ref. 024CPB

• POSITIONER CLIPS B

OT BAR Multiuse 022RGO Ref. 022RGO

• 2 CASTABLE CONNECTORS

OT BAR Multiuse CLIP RITENTIVA GIALLA

Ref. 027CRG

• YELLOW CLIPS (MEDIUM RETENTION)

OT BAR Multiuse CLIP RITENTIVA ROSA Ref. 026CRR

• PINK CLIPS (SOFT RETENTION)

OT BAR Multiuse CLIP NEW ROSSA NEW Ref. 027CRS

• RED CLIPS (EXTRA SOFT RETENTION)

Inseritore-estrattore Ot BAR Ref. 472ICV

• TOOL FOR INSERTING OT BAR MULTIUSE CLIPS

OT BAR Multiuse chiave Parallelometro Ref. 028OCP

• PARALLELOMETER KEY FOR OT BAR MULTIUSE

OT BAR Multiuse connettore Ref. 155CC

• Connector

Study

Laboratory

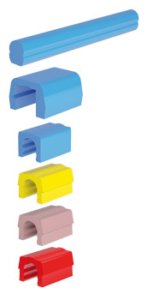

From top to bottom:
Castable bar version A
Castable box
Positioning clips A
Retentive clip - Medium retention
Retentive clip - Soft retention

The "RIGID" bar is likely to be used as "linking" between two steady teeth where a back and forth rocking is necessary. Besides this kind of bar can be used in a multiple steady teeth scenario in which the base of a prostheses laid down on an "ATROPHIC" tissue gum.

Bar to be mounted using the mandrel on side "A" and complete way up by resin or wax.

Finished casting. Do not wear out the retentive surface when polishing.

Level undercuts using wax and insert positioning clips "A".

In order to isolate, adapt some adhesive tape (ie: scotch) on the positioners "A" and on the cast bar, then insert the castable box housings

Connect the castalbe boxes with self curing resin. the adhesive tape will avoid the infiltration of th resin.

Finish wax up and add castable connectors for reinforcement, sprue it and cast.

Finished casting with retentive clips snapped into place.

Finished denture with cast reinforcement and retentive clips inserted.

resilient

Bar to be mounted using the mandrel on side "B" and complete way up by resin or wax.

Finished casting. Do not wear out the retentive surface when polishing.

Level undercuts using wax and insert positioning clips "B".

In order to isolate, adapt some adhesive tape (ie: scotch) on the positioners "B" and on the cast bar, then insert the castable box housings

Connect the castalbe boxes with self curing resin. the adhesive tape will avoid the infiltration of th resin.

Finish wax up and add castable connectors for reinforcement, sprue it and cast.

Finished casting with retentive clips snapped into place.

Finished denture with cast reinforcement and retentive clips inserted.
