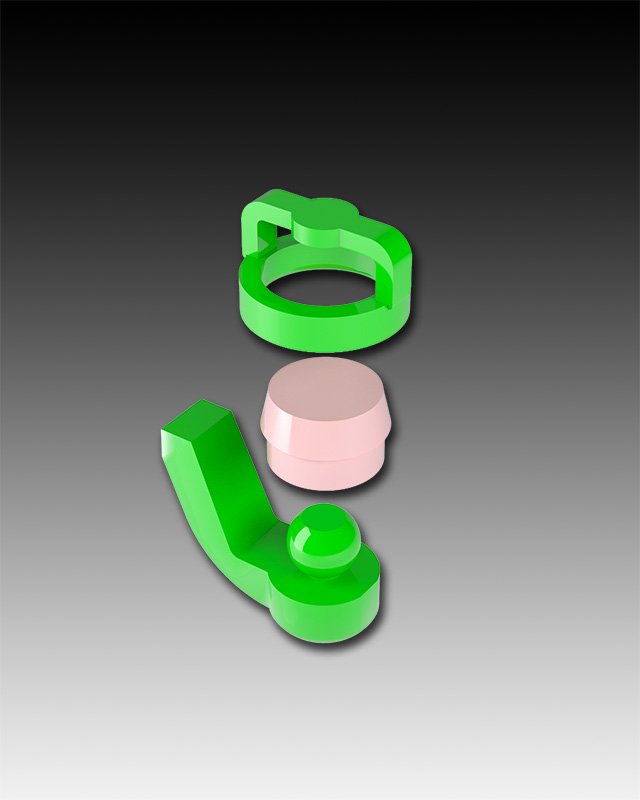

OT Cap

The extracoronal OT Cap castable attachments are used in combination prostheses, frames, connecting bars on natural teeth, roots and implants.

On prosthetic projects with a rigid structure with appropriate milling and counterattacks, they work as retentive stabilizer buttons.

In resilient prosthetics without milling, they work with shock-like yielding due to the flat ball head and the elastic retentive caps.

It is also possible to manage the seal by applying the appropriate colored cap and seal. At the discretion, in addition to the nylon-only caps, the TITAN CAP caps can also be applied. OT CAP TECNO attachments must be considered precision attachments.

The titanium sphere and the titanium ring incorporated in the nylon cap are mechanically constructed with calculated tolerances that ensure good accuracy.

In addition, there is no risk of wear during the sandblasting, polishing and casting processes, as the sphere is fixed parallel to the die only when the work is completed.

PRODCUT INFO

DENTAL CLINIC

LABORATORIO

PRODUCT SPECIFICATIONS

VIDEO

PRODCUT INFO

OT CAP SYSTEM ATTACHMENTS

TITANIUM FLEX SINGLE SPHERE NORMAL SIZE + TiN

(FOR LASER SOLDERING - FOR BONDING)

Ref. 038STF

Kit contains:

• 2 SINGLE TITANIUM FLEX SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES

TITANIUM SINGLE SPHERE NORMAL SIZE + TiN

(FOR LASER SOLDERING - FOR BONDING)

Ref. 038STN

Kit contains:

• 2 SINGLE TITANIUM FLEX SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES

TITANIUM SINGLE SPHERE MICRO SIZE + TiN

(FOR LASER SOLDERING - FOR BONDING)

Ref. 038STM

Kit contains:

• 2 SINGLE TITANIUM FLEX SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES

NORMAL SIZE OT CAP

Ref. 092CAN

Kit contains:
• 4 CASTABLE SINGLE SPHERES
• 4 PINK RETENTIVE CAPS
• 4 STAINLESS STEEL HOUSINGS
• 4 PLASTIC POSITIONERS

MICRO SIZE OT CAP

Ref. 092CAM

Kit contains:
• 4 CASTABLE SINGLE SPHERES
• 4 PINK RETENTIVE CAPS
• 4 STAINLESS STEEL HOUSINGS
• 4 PLASTIC POSITIONERS

“ECONOMIC” OT CAP NORMAL SIZE

Ref. 196BCN

Kit contains:
• 1 CASTABLE PRESECTIONED BAR
• 1 CASTABLE PRESECTIONED BEVELED BAR
• 4 CLEAR RETENTIVE CAPS (standard retention)

“ECONOMIC” OT CAP MICRO SIZE

Ref. 197BCM

Kit contains:
• 1 CASTABLE PRESECTIONED BAR
• 1 CASTABLE PRESECTIONED BEVELED BAR
• 4 CLEAR RETENTIVE CAPS (standard retention)

OT CAP & MONO OT BOX FOR FRAME NORMAL SIZE

Ref. 099BSN

Kit contains:
• 2 CASTABLE PRESECTIONED BARS (1 straight + 1 beveled)
• 4 Clear RETENTIVE CAPS
• 4 CASTABLE MONO OT BOX
• 4 PLASTIC POSITIONERS

OT CAP & MONO OT BOX FOR FRAME MICRO SIZE

Ref. 099BSM

Kit contains:
• 2 CASTABLE PRESECTIONED BARS (1 straight + 1 beveled)
• 4 Clear RETENTIVE CAPS
• 4 CASTABLE MONO OT BOX
• 4 PLASTIC POSITIONERS

OT CAP TECNO

Ref. 093TCN (NORMO)
Ref. 093TCM (MICRO)

Kit contains:
• 2 PRE-ANGULATED CASTABLE EXTENSIONS
• 2 TITANIUM SINGLE THREADED SPHERES
• 2 TITANIUM BOND-IN THREADED SLEEVES
• 2 TRANSPARENT CAPS NORMAL/MICRO
• 2 PINK CAPS NORMAL/MICRO
• 2 YELLOW CAPS NORMAL/MICRO

RICAMBI - NORMO - 2.5mm

Ref. 055SCN

• 4 CASTABLE SINGLE SPHERES (normal size)

Ref. 151BAN

• 2 CASTABLE PRESECTIONEd BEVELED BARS (normal size)

Ref. 150BPN

• 2 CASTABLE PRESECTIONED BAR (normal size)

Ref. 048CAN

• 6 SILVER CAPS NORMAL SIZE - ELASTIC AND GYMMY (normal 350g)

Ref.048CON

• 6 GOLD CAPS - SLIGHTLY ELASTIC (normal 500g)

Ref. 049PCN

• 6 GREEN CAPS (very elastic retention - normo 350g)

Ref. 060CRNAY

• 6 YELLOW CAPTS (extra soft retention - normo 500g)

Ref. 040CRNSN

• 6 PINK CAPS (soft retention normo 900g)

Ref. 040CRN

• 6 CLEAR CAPS (standard retention - normo 1300g)

Ref. 040TCN

• 2 TITAN CAPS (normo 1500g)

Ref. 043CLN

• 6 BLACK CAPS (for laboratory use only - normal)

Ref. 040CRNDR8

• 6 AQUA CAPS (strong retention - undersized internal diameter for worn out sphere or for ø 2.25 sphere 1300 gr)

Ref. 040CRNSNDR8

• 6 PINK CAPS (soft retention - undersized internal diameter for worn out sphere or for ø 2.25 sphere 900 gr)

Ref. 049PCNDR8

• 6 ORANGE CAPS (very elastic retention - undersized internal diameter for worn out sphere or for ø 2.25 sphere 350 gr)

Ref. 060CRNAYDR8

• 6 YELLOW CAPS (extra soft retention - undersized internal diameter for worn out sphere or for ø 2.25 sphere 500 gr)

Ref. 042AMN

• 2 MONO OT BOX (castable housings for caps)

Ref. 041CAN

• 2 STAINLESS STEEL HOUSINGS (normo)

Ref. 041CTN

• 2 TITANIUM HOUSINGS (normo)

Ref. 101PPN

• 2 PLASTIC POSITIONERS NORMAL SIZE (normo)

RICAMBI - MICRO - 1.8mm

Ref. 055SCM

• 4 CASTABLE SPHERES MICRO SIZE

Ref. 151BAM

• 2 CASTABLE PRESECTIONEd BEVELED BARS (micro)

Ref. 150BPM

• 2 CASTABLE PRESECTIONEd BARS (micro)

Ref. 048CAM

• 6 SILVER CAPS (extra-resilient - elastic and gummy micro 200g)

Ref. 048COM

• 6 GOLD CAPS - SOFT RETENTION EXTRA RESILIENT - MICRO 450 GR.

Ref. 049PCM

• 6 GREEN CAPS - VERY ELASTIC RETENTION - MICRO 200 GR.

Ref. 060CRMAY

• 6 YELLOW CAPS - EXTRA SOFT RETENTION - MICRO 450 GR.

Ref. 040CRMSN

• 6 PINK CAPS - SOFT RETENTION - MICRO 800 GR.

Ref. 040CRM

• 6 CLEAR CAPS - STANDARD RETENTION - MICRO 1100 GR.

Ref. 040TCM

• 2 TITAN CAPS - STANDARD SIZE - MICRO 1300 GR.

Ref. 043CLM

• 6 BLACK CAPS FOR LABORATORY USE - MICRO

Ref. 040CRMDR8

• 6 WATER GREEN CAPS - hard retention - micro 1100 gr. - undersized internal diameter for worn 2.5 mm sphere or for 1.6 mm sphere

Ref. 049PCMDR8

• 6 ORANGE CAPS (very elastic retention - micro 200 gr)

Ref. 042AMM

• 2 MONO OT BOX (normo castable housing for caps)

Ref. 041CAM

• 2 STAINLESS STEEL HOUSING (micro)

Ref. 041CTM

• 2 TITANIUM HOUSINGS (micro)

Ref. 101PPM

• 2 PLASTIC POSITIONERS (micro)

ACCESSORIES - NORMO AND MICRO SIZE

Ref. 044PPN

• 2 TRANSFER PIVOT (normo)

Ref. 100SAN

• 10 ALUMINUM SPACERS (normo - for ot box bars)

Ref. 044PPM

• 2 TRANSFER PIVOTS (micro)

Ref. 100SAM

• 10 ALUMINUM SPACERS (micro - for ot box bars)

Ref. 155CC

• 6 CONNECTORS

Ref. 187CRS

• 2 CONCAVE SPHERES (1.8 mm, 2.2 mm, 2.5 mm)

Ref. 189SRS

• 2 SOLID SPHERES ( Ø 1,8mm)

Ref. 100PD

• 10 PROTECTIVE DISKS

Ref. 038GCS

• 2 CASTABLE SLIDING BASES

Ref. 044PP22

• 2 MICRO TRANSFER PIVOTS (2.2mm)

TOOLS - NORMO AND MICRO SIZE

Ref. 485IC

EXTRACTOR/INSERTER TOOL FOR CAPS

Ref. 74AC01

KEY FOR PARALLELOMETER NORMAL SIZE

Ref. 74AC02

KEY FOR PARALLELOMETER MICRO SIZE

Ref.74AC03

TECNO KEY FOR PARALLELOMETER NORMAL AND MICRO SIZES

Ref. 491EC

MULTIUSE REMOVAL TOOL FOR RETENTIVE CAPS

Ref. 080RCN

REAMER TOOL FOR OT CAPS

Ref. 080RCM

REAMER TOOL FOR OT CAPS

Ref. 082ATN

TOOL FOR TESTING CAP RETENTION

Ref. 083ATM

TOOL FOR TESTING CAP RETENTION

DENTAL CLINIC

LABORATORIO

Calcinable bars

Remove the bar portion from use

Cut the bar

Mount in parallel using the appropriate key (golden)

Finish and polish the support: leave the stump rough ball holder
