OT Cap Micro M1.6

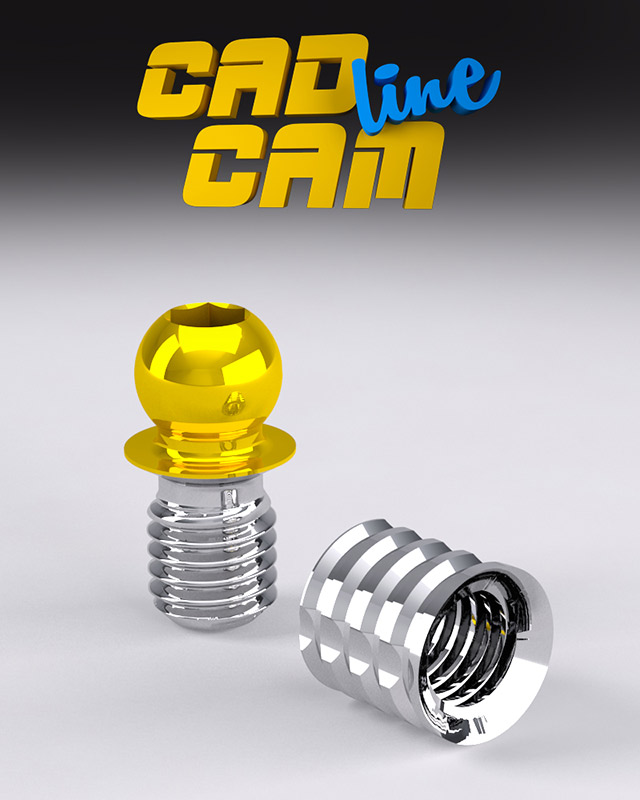

This new line consists of a universal threaded sheath made of titanium and Ot Cap Normo or Micro or Ot Equator Profile ball attachments:
this system can be used for machining with Cad Cam method and with the traditional lost wax method.

The threaded sheath can be glued and used indiscriminately for all three types of connections.
The couplings have a thread with a 1.6 mm diameter pitch. With the use of the systematic Cad/Cam or with the handmade one, the result is always the same:
maximum precision and interchangeability

PRODCUT INFO

DENTAL CLINIC

LABORATORY

PRODUCT SPECIFICATIONS

VIDEO

PRODCUT INFO

Ref. 139KSFM

KIT SINGLE THREADED SPHERE MICRO SIZE + TiN
WITH SLEEVE TO BE BONDED

Kit contains:

• 2 TITANIUM MICRO SINGLE THREADED SPHERE (hex mm. 0.9 thread mm. 1.6)
• 2 TITANIUM BOND - IN THREADED SLEEVE
• 2 S/STEEL SPACER for the THREADED SLEEVE (micro sphere)

Ref. 192ACM

KIT ASSORTIMENTO CAPPETTE OT CAP MICRO

Kit contains:

• 1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 green, 1 yellow, 1 pink, 1 clear)

SPARE PARTS

Ref. 239SFM

• 1 SINGLE ThREADED SPHERE MICRO SIZE + TiN (for threaded sleeve hex mm. 0,9 thread mm. 1.6)

Ref. 239GSF

• 1 TITANIUM BOND-IN THREADED SLEEVE (for normal and micro - mm. 1.6)

Ref. 239SSM

• 1 STAINLESS STEEL SPACER FOR THREADED SLEEVE (micro sphere)

Ref. 048CAM

• 6 CAPS EXTRA-RESILIENT MICRO / SILVER (elastic and gummy – 350g)

Ref. 048COM

• 6 CAPS EXTRA-RESILIENT / GOLD (slightly elastic – 500g)

Ref. 049PCM

• 6 CAPS MICRO / GREEN (very elastic retention – 350g)

Ref. 060CRM AY

• CAPS MICRO / YELLOW (extra soft retention - 500g)

Ref. 040CRM SN

• 6 CAPS MICRO / PINK (soft retention – 900g)

Ref. 040CRM

• 6 CAPS MICRO/ CLEAR (soft retention – 900g)

Ref. 040TCM

• 2 TITAN CAPS MICRO

Ref. 043CLM

• 2 CAPS MICRO / BLACK (for laboratory use only)

Ref. 041CAM

• 2 STAINLESS STEEL HOUSINGS MICRO

Ref. 041CTM

• 2 TITANIUM HOUSINGS MICRO

TOOLS

Ref. 772CSF

• 1 HEX DRIVER (for threaded sphere normal hex 1.3mm)

Ref. 485IC

• 1 EXTRACTOR/INSERTER TOOL FOR CAPS (normal and micro sizes - for the insertion of the caps inside the metal housings)

LABORATORY

Step by step threaded sleeve bonding procedure

Once the bar has been connected with wax, create an area where the attachment spacer will be placed.

Apply separator to the base of the attachment spacer and postion using the parallelometer key.

With the attachment spacer in position, complete the wax-up design.

Carefully remove the attachment spacers and proceed with the normal casting procedure.

Screw the threaded attachment of choice (micro Ball shown) into the threaded sleeve.

Place the assembled attachment into the parallelometer key. Use a self curing metal to metal bonding composite on the sleeve and in the cylinder.

After the composite is cured, remove any excess material.

Unscrew the attachment to verify if the threaded sleeve is securely bonded in plac.

The finished bar complete with attachments.
