Threaded connections – OT Cap Normo M2

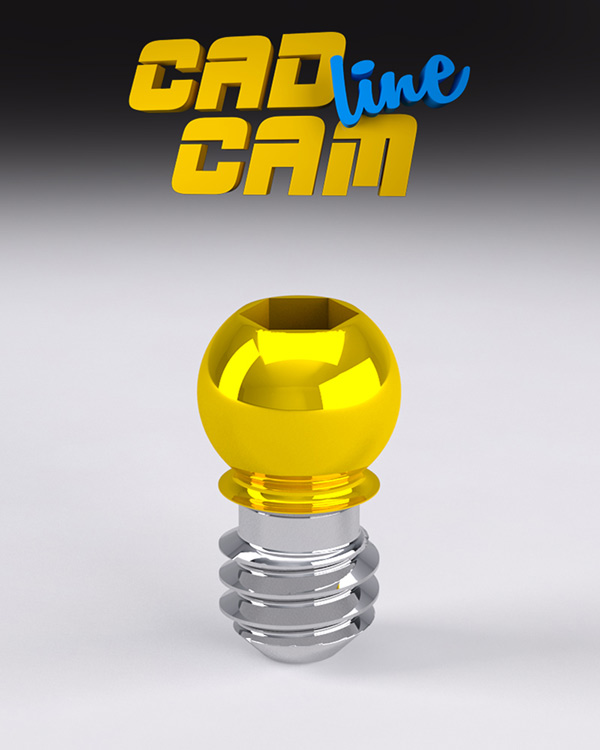

Indicated for multiple placement applications on CAD/CAM milled or self-tapped overdenture bars, the Single Threaded Sphere (STS) is manufactured with a titanium nitrate coating, creating a smooth, 1,600 Vickers hardness surface.

Product Features:

  • Internal Hex Design
  • Simple Maintenance
  • Low Profile
  • Individual Hex Drivers Available
  • Available in Normal [2.5 mm diameter] and Micro [1.8 mm diameter] with a standard 2 mm thread base

product info
laboratory
product specification
Videos and Documents

Product info

Ref. 039SFN2

1 SINGLE THREADED SPHERE MICRO SIZE + TiN
HEX 1.3mm, THREAD 2.0mm


Ref. 192ACN

KIT ASSORTIMENTO CAPPETTE OT CAP NORMAL

Kit contains:

1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS
(1 GREEN, 1 YELLOW, 1 PINK, 1 CLEAR)


Spare Parts

Ref. 048CAN

6 SILVER CAPS NORMAL SIZE (EXTRA-RESILIENT)
(ELASTIC AND GUMMY) - 350g


Ref. 048CON

6 GOLD CAPS NORMAL SIZE (ETRA-RESILIENT)
(SLIGHTLY ELASTIC) - 500g


Ref. 049PCN

6 GREEN CAPS NORMAL SIZE
(VERY ELASTIC RETENTION) - 350g


Ref. 060CRN AY

YELLOW CAPS NORMAL SIZE
(EXTRA SOFT RETENTION)- 500g


Ref. 040CRN SN

6 PINK CAPS NORMAL SIZE
(SOFT RETENTION) - 900g


Ref. 040CRN

6 CLEAR CAPS NORMAL SIZE
(STANDARD RETENTION) - 1300g


Ref. 040TCN

2 TITAN CAPS NORMAL SIZE


Ref. 043CLN

2 BLACK CAPS NORMAL SIZE
(FOR LABORATORY USE ONLY)


Ref. 041CAN

2 STAINLESS STEEL HOUSINGS NORMAL SIZE


Ref. 041CTN

2 TITANIUM HOUSINGS NORMAL SIZE


Tools

Ref. 760CBR

1 HEX DRIVER fOR THREADED SPHERE NORMAL
HEx 1.3mm


Ref. 485IC

1 EXTRACTOR/INSERTER TOOL FOR CAPS NORMAL AND MICRO SIZES
(FOR THE INSERTION OF THE CAPS INSIDE THE METAL HOUSINGS)


Laboratory

Step by step threaded sleeve bonding procedure

Once the bar has been connected with wax, create an area where the attachment spacer will be placed .

Apply separator to the base of the attachment spacer and postion using the parallelometer key .

With the attachment spacer in position, complete the wax-up design .

Carefully remove the attachment spacers and proceed with the normal casting procedur.

Screw the threaded attachment of choice (micro Ball shown) into the threaded sleeve .

Place the assembled attachment into the parallelometer key. Use a self curing metal to metal bonding composite on the sleeve and in the cylinder.

After the composite is cured, remove any excess material.

Unscrew the attachment to verify if the threaded sleeve is securely bonded in plac.

The finished bar complete with attachments.
