OT Vertical

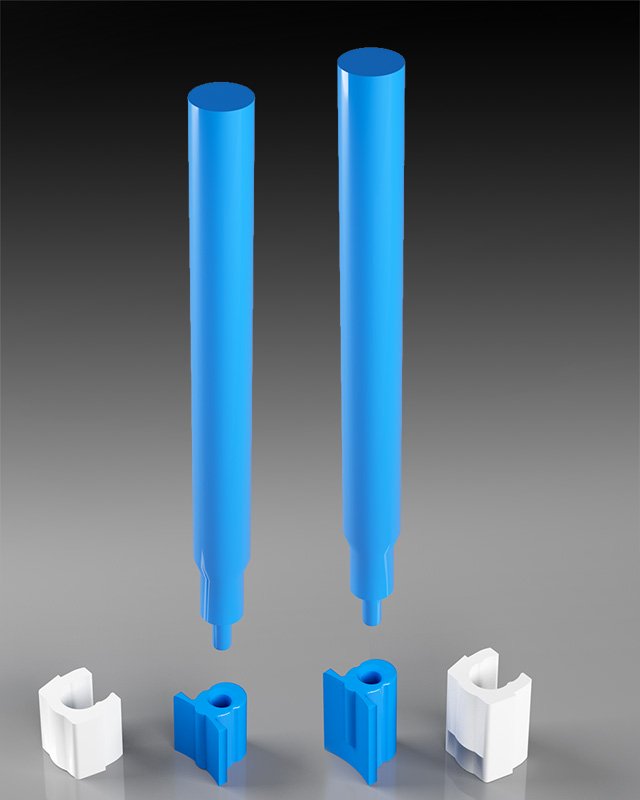

OT Vertical is a cylindrical attachment that works by friction, suitable for partial dentures and bar connections. The castable plastic pin is used as a parallelometer key and, after casting, as a centering pin to connect and balance the prosthesis during the insertion phase, especially when there are no counter-milling operations. The male metal and female nylon components are available with a length of 5mm, but can be reduced, without changing the functionality up to a length of 3.5mm. The reference of these two lengths facilitates the replacement of the elastic clip (female) by the dentist.

PRODCUT INFO

DENTAL CLINIC

LABORATORY

PRODUCT SPECIFICATIONS

VIDEO

PRODCUT INFO

OT VERTICAL

Ref. 0710BV

• 4 CALCINABLE MASKS
• 2 STEADY
• 4 WHITE RETENTIVE CLIPS
• 2 GREEN RETENTIVE CLIPS
• 4 CERAMIC BARS
• 4 KEY FOR PARALLELOMETER + CALCINABLE PLUG

Ref. 072MCV

• 2 CASTABLE MALES
• 2 PIN KEYS

Ref. 072SCV

• 2 CASTABLE STEADY

Ref. 882PPC

• 1 CARAMIC BAR

Ref. 072CBV

• 4 CLIP / WHITE (standard retention)

Ref. 072CVV

• 4 CLIP / GREEN (standard retention)

STRUMENTI

Ref. 472ICV

• TOOL FOR INSERTING OT BAR MULTIUSE CLIPS

DENTAL CLINIC

Skeleton melted and sand

Skeleton finished, insertion of the Retentive Clip using the appropriate inserter

Skeletonized on the model.
Technically functional even without milling, thanks to the balancing pin

The vertical and the retentive clips can be lowered in height, in order not to risk inconveniences, it is advisable not to shorten them beyond the indicative sign of 3.5 mm.

LABORATORY

Extract the CLIP from the container using a metal tool.

Check to see if the previous CLIP it was whole or shortened to 3.5 mm

If it is necessary to shorten it, use a cutter adequate and consume it up to the mark indicated on the back

With the appropriate INSERATOR, apply the new CLIP (whole or shortened)

The attack and the clip can be mounted whole (5 mm) or shortened (3.5 mm) always limiting the part opposite to the hole.

Parallelogram wrench: insert the plug into the hole of the attachment, rotate a few times to obtain the correct seal and be able to slide it out comfortably after fixing the attachment in the wax.

Completed the assembly and the wax modeling insert the ceramic cylinder in the hole of the attachment and melt

Blast the melt, to remove the ceramics remained in the hole to use a ball cutter or an acid adequate

Before duplicating the model incoating, cut from the key of the parallelometer the tip of the pin made of plastic from the rest of the stem.

Insert the sectioned plastic plug in the hole of the attack and pour the material to duplicate (silicone or jelly)

In the model reproduced in cladding, the plastic (calcinable) plug, can be removed or remain inserted in the coating.

Skeleton modeled, proceed to the merger.

Skeleton melted and sanded.

Finished skeleton, insertion of the clip retentive using the appropriate inserter.

Skeletonized on the model. Technically functional even without milling, thanks to the molten plug of balancing.
