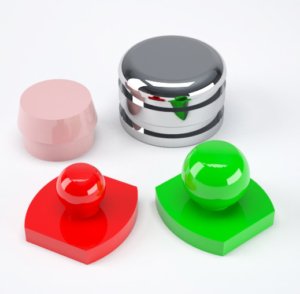

Overdenture OT Cap

In overdenture, the use of the PIANA ball head and the elastic cap with spherical interior, in the extended plaque prostheses, allows a vertical failure during mastication which in some cases combines with gingival yielding, thanks also to the sensitivity of the nylon of the caps which act in a humid environment at a constant temperature. The experience of some dentists leads to the belief that in many cases a stability with minimal trauma is achieved.

Product Information
study
laboratory
product specifications
Videos and Documents

Product Information

Castable Pivots


Perni Plastica NormoRef. 010PSP
CANAL IMPRESSION CASTABLE PIVOTS
Kit Contains:

• 20 CASTABLE PIVOTS NORMAL SIZE

Perni Plastica Micro

Ref. 012PSM

 CANAL IMPRESSION CASTABLE PIVOTS




Kit Contains:
• 20 CASTABLE PIVOTS MICRO SIZE


OT Cap System Attachments


Sfera-FlexRef. 038STF
TITANIUM FLEX SINGLE SPHERE NORMAL SIZE + TiN
(FOR LASER SOLDERING - FOR BONDING)
KIT CONTAINS:

•  2 SINGLE TITANIUM FLEX SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES

Sfera-Fissa-con-guida

Ref. 038STN
  TITANIUM SINGLE SPHERE NORMAL SIZE + TIN (FOR LASER SOLDERING - FOR BONDING)

KIT CONTAINS:
• 2 SINGLE TITANIUM SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES


Sfera-Fissa-micro-con-guida

Ref. 038STM

TITANIUM SINGLE SPHERE MICRO SIZE + TiN (FOR LASER SOLDERING - FOR BONDING

 KIT CONTAINS:
• 2 SINGLE TITANIUM SPHERES
• 2 PINK CAPS - SOFT RETENTION
• 1 SPHERE HOLDER
• 2 CASTABLE SLIDING BASES


Scatola OT-CAP Calcinabile NORMO Singolo 2016 092CANRef. 092CAN

NORMAL SIZE OT CAP

KIT CONTAINS:
• 4 SINGLE SPHERES
• 4 PINK RETENTIVE CAPS
•4 STAINLESS STEEL HOUSINGS
• 4 PLASTIC POSITIONERS


Scatola OT-CAP Calcinabile MICRO Singolo 2016 092CAMRef. 092CAM
MICRO SIZE OT CAP

Kit Contains:
- 4 Single Spheres
- 4 Pink Caps - Soft Retention
- 4 Stainless Steel  Housings - 2 for Resin, 2 for Soldering
- 4 Plastic Positioners


Scatola OT-CAP Calcinabile NORMO Economico 196BCNRef. 196BCN
“ECONOMIC” OT CAP NORMAL SIZE


KIT CONTAINS:
• 1 CASTABLE PRESECTIONED BAR
• 1 CASTABLE PRESECTIONED BEVELED BAR
•  4 Clear RETENTIVE CAPS (Standard retention)


Scatola OT-CAP Calcinabile MICRO Economico 197BCMRef. 197BCM
“ECONOMIC” OT CAP MICRO SIZE

KIT CONTAINS:
• 1 CASTABLE PRESECTIONED BAR
• 1 CASTABLE PRESECTIONED BEVELED BAR
• 4 Clear RETENTIVE CAPS (Standard retention)




Scatola OTBOX MONO NORMO 099BSNRef. 099BSN
OT CAP & Mono OT BOX FOR F RAME MICRO SIZE

KIT CONTAINS:

•  2 CASTABLE PRESECTIONED BARS (1 straight + 1 beveled)
• 4 Clear RETENTIVE CAPS
• 4 CASTABLE MONO OT BOX
• 4 PLASTIC POSITIONERS


Scatola OTBOX MONO NMICRO 099BSMRef. 099BSM
OT CAP & Mono OT BOX FOR F RAME MICRO SIZE

KIT CONTAINS:
• 2 CASTABLE PRESECTIONED BARS (1 straight + 1 beveled)
• 4 Clear RETENTIVE CAPS
• 4 CASTABLE MONO OT BOX
• 4 PLASTIC POSITIONERS


Scatola OT CAP TECNO NORMO 093CTN

Ref. 093TCN (NORMO)
Ref. 093TCM (MICRO)
Scatola OT CAP TECNO MICRO 093CTM
OT CAP TECNO NORMAL/micro

KIT CONTAINS:

• 2 PRE-ANGULATED CASTABLE extensions
• 2 TITANIUM SINGLE THREADED SPHERES
• 2 TITANIUM BOND-IN THREADED SLEEVES
• 2 TRANSPARENT CAPS normal /MICRO
• 2 PINK CAPS normal /MICRO
• 2 YELLOW CAPS normal /MICRO


Spare parts - Normal - Ø 2.5mm


OT Cap Normo Calcinabile 055SCNRef. 055SCN    4 CASTABLE SINGLE SPHERES NORMAL SIZE


OT CAP Barra Calcinabile Normo verde 151BANRef. 151BAN    2 CASTABLE PRESECTIONED BEVELED BARS NORMAL SIZE


OT CAP Barra Calcinabile dritta Normo verdeRef. 150BPN    2 CASTABLE PRESECTIONED BARS NORMAL SIZE


otcap NORMO argentoRef. 048CAN  6 SILVER CAPS NORMAL SIZE (EXTRA-RESILIENT) (ELASTIC AND GUMMY) - 350 g


otcap NORMO oroRef. 048CON  6 GOLD CAPS NORMAL SIZE (EXTRA-RESILIENT) (SLIGHTLY ELASTIC) - 500g


otcap NORMO verdeRef. 049PCN    6 GREEN CAPS NORMAL SIZE (VERY ELASTIC RETENTION) - 350g


otcap NORMO giallaRef. 060CRNAY    6 YELLOW CAPS NORMAL SIZE (EXTRA SOFT RETENTION) - 500g


otcap NORMO rosaRef. 040CRNSN    6 PINK CAPS NORMAL SIZE (SOFT RETENTION) - 900g


otcap NORMO trasparenteRef. 040CRN    6 Clear CAPS NORMAL SIZE (STANDARD RETENTION) - 1300g


otcap NORMO titanRef. 040TCN    2 TITAN CAPS NORMAL SIZE


otcap NORMO neraRef. 043CLN    6 BLACK CAPS NORMAL SIZE (FOR LABORATORY USE ONLY)




otcap NORMO acquaRef. 040CRNDR8    6 LIGHT GREEN CAPS NORMAL SIZE (STRONG RETENTION)

(undersized internal diameter for worn out sphere or for Ø 2.25 SPHERE) - 1300 gr


otcap NORMO rosa

Ref. 040CRNSNDR8

6 PINK CAPS NORMAL SIZE (SOFT RETENTION)

(undersized internal diameter for worn out sphere or for Ø 2.25 SPHERE) - 900 gr




otcap NORMO arancio

Ref. 049PCNDR8

6 ORANGE CAPS NORMAL SIZE (VERY ELASTIC RETENTION)

(undersized internal diameter for worn out sphere or for Ø 2.25 SPHERE) - 350 gr




otcap calcinabile NORMO

Ref. 042AMN    2 MONO OT BOX NORMAL SIZE
(CASTABLE HOUSINGS FOR CAPS)




Contenitore NORMO inox

Ref. 041CAN  2 STAINLESS STEEL HOUSINGS NORMAL SIZE


Contenitore NORMO titanio

Ref. 041CTN    2 TITANIUM HOUSINGS NORMAL SIZE




OT Cap posizionatore NORMORef. 101PPN    2 PLASTIC POSITIONER NORMAL SIZE


Spare parts - Micro - Ø 1.8mm


OT Cap Micro Calcinabile 055SCMRef. 055SCM    4 CASTABLE SPHERES MICRO SIZE


OT CAP Barra Calcinabile Micro Rossa 151BAMRef. 151BAM    2 CASTABLE PRESECTIONED BEVELED BARS MICRO SIZE


OT CAP Barra Calcinabile dritta Micro RossaRef. 150BPM    2 CASTABLE PRESECTIONED BARS MICRO SIZE


otcap MICRO argentoRef. 048CAM    6 SILVER CAPS MICRO SIZE (EXTRA-RESILIENT) (ELASTIC AND GUMMY) - 200g


otcap MICRO oroRef. 048COM  6 GOLD CAPS MICRO SIZE (EXTRA-RESILIENT) (SLIGHTLY ELASTIC) - 450g


otcap MICRO verdeRef. 049PCM    6 GREEN CAPS MICRO SIZE (VERY ELASTIC RETENTION) - 200g


otcap MICRO giallaRef. 060CRMAY    6 YELLOW CAPS MICRO SIZE (EXTRA SOFT RETENTION) - 450g


otcap MICRO rosaRef. 040CRMSN    6 PINK CAPS MICRO SIZE (SOFT RETENTION) - 800g


otcap MICRO trasparenteRef. 040CRM    6 Clear CAPS MICRO SIZE (STANDARD RETENTION) - 1100g


otcap MICRO titanRef. 040TCM   2 TITAN CAPS MICRO SIZE


otcap MICRO neraRef. 043CLM     6 BLACK CAPS MICRO SIZE (FOR LABORATORY USE ONLY)




otcap MICRO acqua

Ref. 040CRMDR8    6 AQUA CAPS MICRO SIZE (STRONG RETENTION)

(undersized internal diameter for worn out sphere or for Ø1,6 mm) - 1100g


otcap MICRO arancio

Ref. 049PCMDR8

 6 ORANGE CAPS MICRO SIZE (VERY ELASTIC RETENTION)

(undersized internal diameter for worn out sphere or for Ø 1,6 mm) - 200g




otcap calcinabile MICRO

Ref. 042AMM

 2 MONO OT BOX MICRO SIZE

(CASTABLE HOUSINGS FOR CAPS)




Contenitore NORMO inox

Ref. 041CAM  2 STAINLESS STEEL HOUSINGS MICRO SIZE




Contenitore MICRO titanio

Ref. 041CTM    2 TITANIUM HOUSINGS MICRO SIZE




OT Cap posizionatore MICRO

Ref. 101PPM    2 PLASTIC POSITIONERS MICRO SIZE


Spare parts - normal and micro


analogo ot-Cap NormoRef. 044PPN    2 NORMAL SPHERE ANALOGS


Ref. 100SAN    10 ALUMINIUM SPACERS FOR OT BOX BARS NORMAL SIZE




analogo ot-Cap MicroRef. 044PPM    2 MICRO SPHERE ANALOGS


Ref. 100SAM    10 spazioatori in alluminio - Micro - per barre OT box


connectorRef. 155CC    6 CONNECTORS


Sfera-Cava-normo



 Ref. 187CRS    2 CONCAVE SPHERES AVAILABLE: Ø1.8 - 2.2 - 2.5mm




Sfera-Solida-Ricostruttiva



Ref. 189SRS    2 SOLID SPHERES AVAILABLE: Ø1.8mm


dischetto-protettivo Ref. 100PD    10 PROTECTIVE DISKS (internal diameter 1,6mm)


Sfera-Fissa-Guida calcinabile  Ref. 038GCS    2 CASTABLE SLIDING BASES


Normal - Micro Tools


Inseritore-Estrattore-485IC

Ref. 485IC

EXTRACTOR/INSERTER TOOL FOR CAPS - NORMAL AND MICRO SIZES

(FOR THE INSERTION OF THE CAPS INSIDE THE METAL HOUSINGS)


Chiave parallel Ref 744AC01Ref. 74AC01 KEY FOR PARALLELOMETER NORMAL SIZE


Chiave parallel Ref 744AC01Ref. 74AC02 KEY FOR PARALLELOMETER MICRO SIZE


Chiave Parallelometro OT TECNORef.74AC03 OT TECNO KEY FOR PARALLELOMETER NORMAL AND MICRO SIZES


Estrattore-491EC

Ref. 491EC MULTIUSE REMOVAL TOOL F OR RETENTIVE CAPS


Ref. 080RCN  REAMER TOOL FOR OT CAPS - NORMAL SIZE


Ref. 080RCM    REAMER TOOL FOR OT CAPS - MICRO SIZE


Ref. 082ATN     TOOL FOR TESTING CAP RETENTION - NORMAL SIZE


Ref. 083ATM    TOOL FOR TESTING CAP RETENTION - MICRO SIZE


Ref. 083ATM  TOOL FOR TESTING CAP RETENTION - MICRO SIZE

Studio

Ot-Cap Overd Studio1

Prepared roots

Ot-Cap Overd Studio2

Put adhesive on the post.

Ot-Cap Overd Studio3

Impression with elastomer material

Ot-Cap Overd Studio4

Protective discs on the fused caps. Resin prosthesis: space corresponding to the caps to be filled with self-hardening resin. Insert the prosthesis in the mouth and tighten

Ot-Cap Overd Studio5

When the resin is hardened, extract the prosthesis, remove the disks and finish off the excess resin

Ot-Cap Overd Studio6

Prosthesis finished

As in the case of using the PIVOT BLOCK, the COPING COVER can also be used for the PIVOT FLEX

Laboratory

OT Cap overdenture

Single Castable Balls - Single-casting

Perni

Pins to be relined with resin

in root canals

otcap overd 5Never use the ball of the pin

otcap overd 6

Cut the pin at the level of the root plane

otcap overd 7

Mount the single sphere in parallel in the most suitable position

otcap overd 8

Monofusion: cap pin and spheres. In addition to the parallelism, the spheres are out of phase with respect to the axis of the pin

Titanium balls

otcap overd 1

Shape the wax hood. Apply the titanium sphere

otcap overd 2

Cover with wax only three sides of the inclined walls

otcap overd 3

Remove the titanium ball from the castable guide base before applying the casting pins.

otcap overd 4

 Titanium sphere inserted into the guide
