Direct attachments for implants

The OT PLUS system offers many solutions, depending on the prosthetic project, with the possibility of planning various types of overdenture treatments.

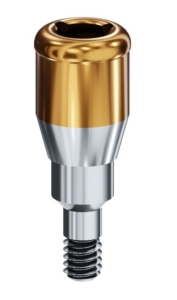

The DENTAURUM attachment is made from Eli grade 5 titanium with a nitride coating. This treatment provides a surface hardness of 1600 Vickers with less adhesion of plaque and bacteria and maximum resistance to wear over time.

The function of this attachment is guaranteed by the coupling between the hemisphere and the retention cap.

OT PLUS retentive caps are available in different colours corresponding to different levels of retention and must always be used with the appropriate metal housing to ensure maximum efficiency and ease of replacement both in the clinic and in the laboratory.

Each attachment is available in various gingival heights, depending on the implant platform, starting from a minimum of 0.5mm to a maximum of 7.0mm.

Dental clinic step by step procedure

Place the abutment on the implant using the designed square driver. Torque range is 22 to 25 newtons.
Silicone discs should be placed on the abutments, followed by nylon retention caps with the metal housing.
The denture is prepared to accept the female caps.
The female caps are gathered up and the silicone discs are removed. Excess acrylic is removed and the denture can be completed.

IMPORTANT NOTE:

Each retention coping offers a minimum duration of 1 year in the patient's mouth (if the components are correctly placed in a parallel plane of insertion).
To replace the copings, use the designed extraction tool and proceed to insert a new coping.

ELASTIC CAPS SYSTEM

FUNCTIONAL ADVANTAGES

Shock absorb functionality

Sensation of superior comfort for the patient during the chewing phases

1 year duration in the patient's mouth

Counting on a parallel plan of insertion of the denture in the patient's mouth

Correction of divergence between implants

Multiple options available for the professional

1

1

1

1

2

3

IMPLANT DIVERGENCE CORRECTION

OT PLUS TOOLS AND COMPONENTS

METAL HOUSING

Steel material

BLACK CAP

Laboratory working phases

PROTECTIVE DISC

Plastic material

OT PLUS CAP INSERTER-EXTRACTOR

Simple and quick procedure to insert and remove the elastic caps.

TRANSFER

LABORATORY ANALOGUE

COMPARISON OF FORCES OF ELASTIC CAPS

(Locator System)

Zest Dental Caps use a different thickness of plastic depending on the type of elastic functionality they want to offer.

OT PLUS caps count on the same design for each component with different chemical formulas in terms of material, depending on the type of elastic retention expected.

This offers an overall advantage in terms of comfort and functionality to the patient's prosthesis.

The dentist will need fewer components and tools to work with a consequent reduction in working time on implant-retained overdenture restorations.

Extra Light Retention (Blue)
